Hopper Weighing System
Description
Hopper Weighing System – Accurate Weighing for Bulk Storage, Dosing, and Process Control
The Hopper / Tank Weighing System by Newton is a reliable and robust solution for measuring the contents of hoppers, silos, tanks, or vessels—whether it’s liquids, powders, or granular materials. Our systems are ideal for applications that require precise level, batch, or inventory monitoring across a wide range of industries including chemical, food & beverage, cement, pharmaceutical, and agriculture.
By integrating high-precision load cells and advanced electronics, our weighing systems ensure real-time, accurate, and continuous weight measurement—eliminating the need for manual level checks or guesswork.
How It Works

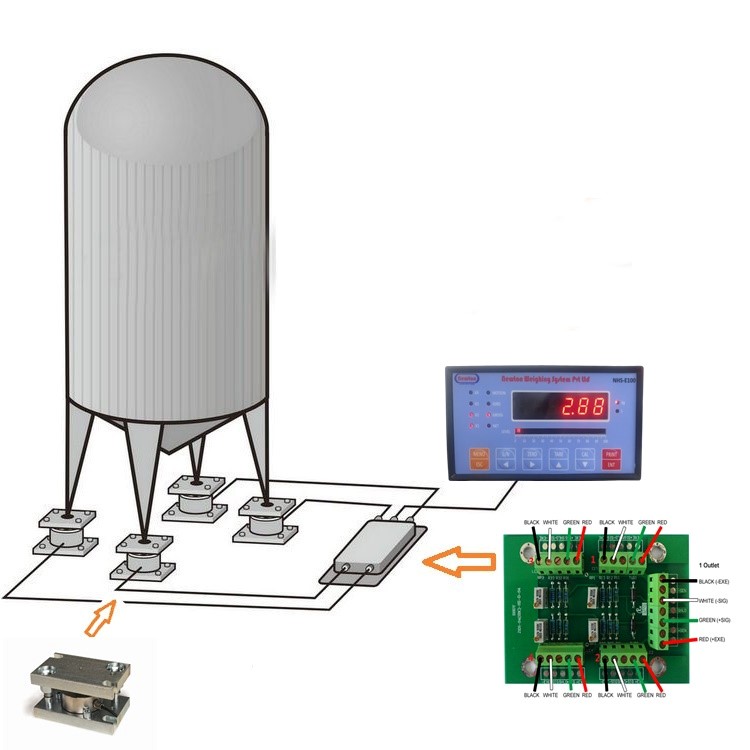

The entire tank or hopper is mounted on load cells, which detect the total weight of the container and its contents. This signal is then transmitted to a Microprocessor based Weight Transmitter, which converts it into a readable weight value. The system can also be integrated into PLC, SCADA, or batching systems for automation and control.
Salient Features
- ✅ Accurate and real-time weight measurement for all types of materials
- ⚖️ High-precision load cells ensure long-term stability and accuracy
- 🧠 Smart weight transmitters / indicators with a series of Communication protocols.
- 🔗 Supports integration with PLC/SCADA systems via Modbus, Profibus, Profinet, Ethernet
- 📊 Remote monitoring and control via Weigh Connect® IoT Platform
- 🌧️ Weather-resistant options available for outdoor silos and tanks
- 🏗️ Customized mounting assemblies and load cell kits to suit any tank shape or size
- 🔧 Hygienic design available for food and pharma-grade application
Applications
- Level and inventory management in silos and storage tanks
- Dosing control in chemical mixing plants
- Raw material measurement in cement, coal, Iron, fertilizer etc industries

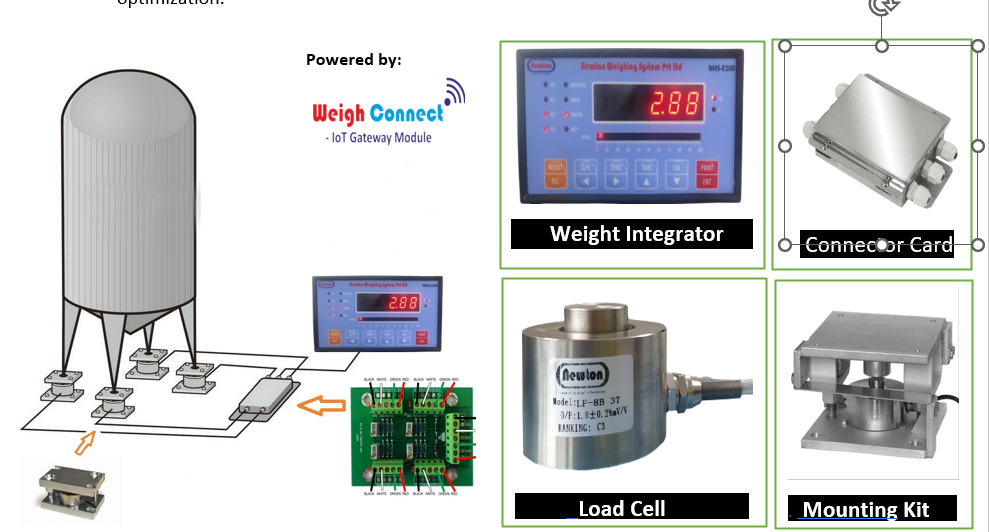

System Components

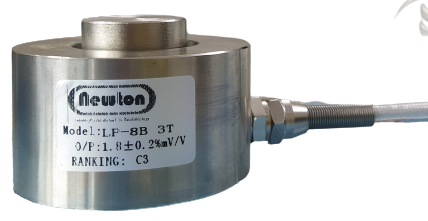

- Compression / Shear Beam Load Cells

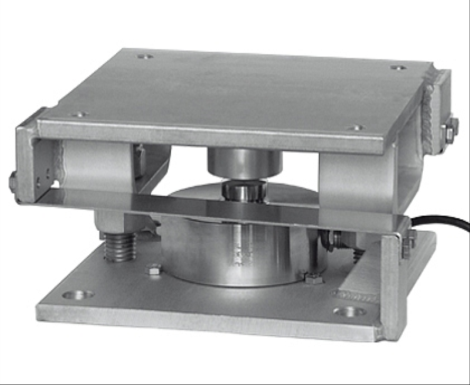

- SS/MS Load Cell Mounting Assemblies

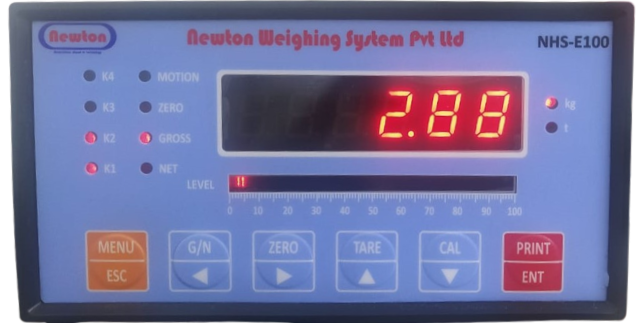

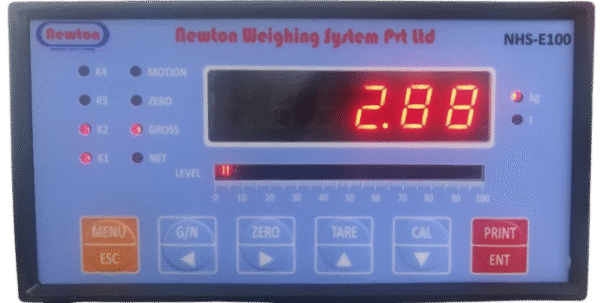

- NHS Weight Transmitter

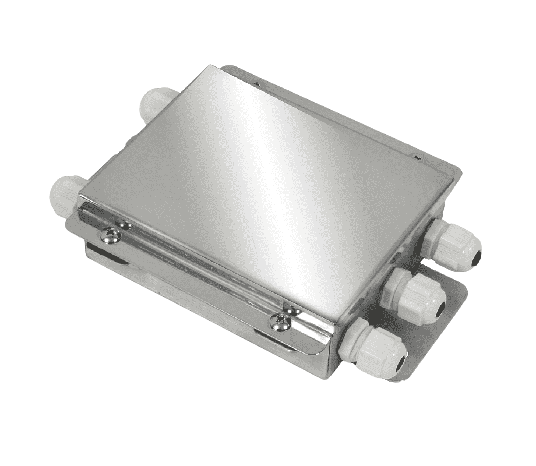

- Junction Boxes with Lightning Protection
- Weight Connect® IoT Gateway (Optional)
